MILLWORK DRAWINGS: 6 VIEWS FOR ACCURATE DESIGN IMPLEMENTATION

Millwork drawings ensure flawless performance of woodworking firms. The process of cooperation between designers and such companies goes in a way that first usually send approximate sketches of their ideas. These pictures are not appropriate for manufacture and cannot count as exact drawings. For this reason, woodworking companies outsource drafting so that manufacturers can get to work. They order various views for different objects to provide enough materials for precise construction.

Contents:

• Plan view
• Elevation
• Cross section
• Detail drawings
• Isometric view
• Floor plan
• Design, detailing and drafting
• What Grade Does to the Drawing Set
• The millwork spec section
• Hospitality, retail and large-scale
• Millwork drawings FAQ

Then woodworking companies send the drawings to designers for the final approval. At this stage, it’s essential to carefully study the millwork drawings. And to do this, designers need a clear understanding of how different draftings’ views may look and what’s the purpose of each. Because if a mistake has crept in the drawings and a designer has not noticed it, craftsmen may produce items that differ from the original idea. As a result, the whole manufacture has to be redone.

To avoid the trouble, we put together the info about different millwork drawing views and tasks they are intended to do. This way, designers will be able to check draftings thoroughly and, thus count on a perfect result working together with woodworking companies.

#1. Plan View

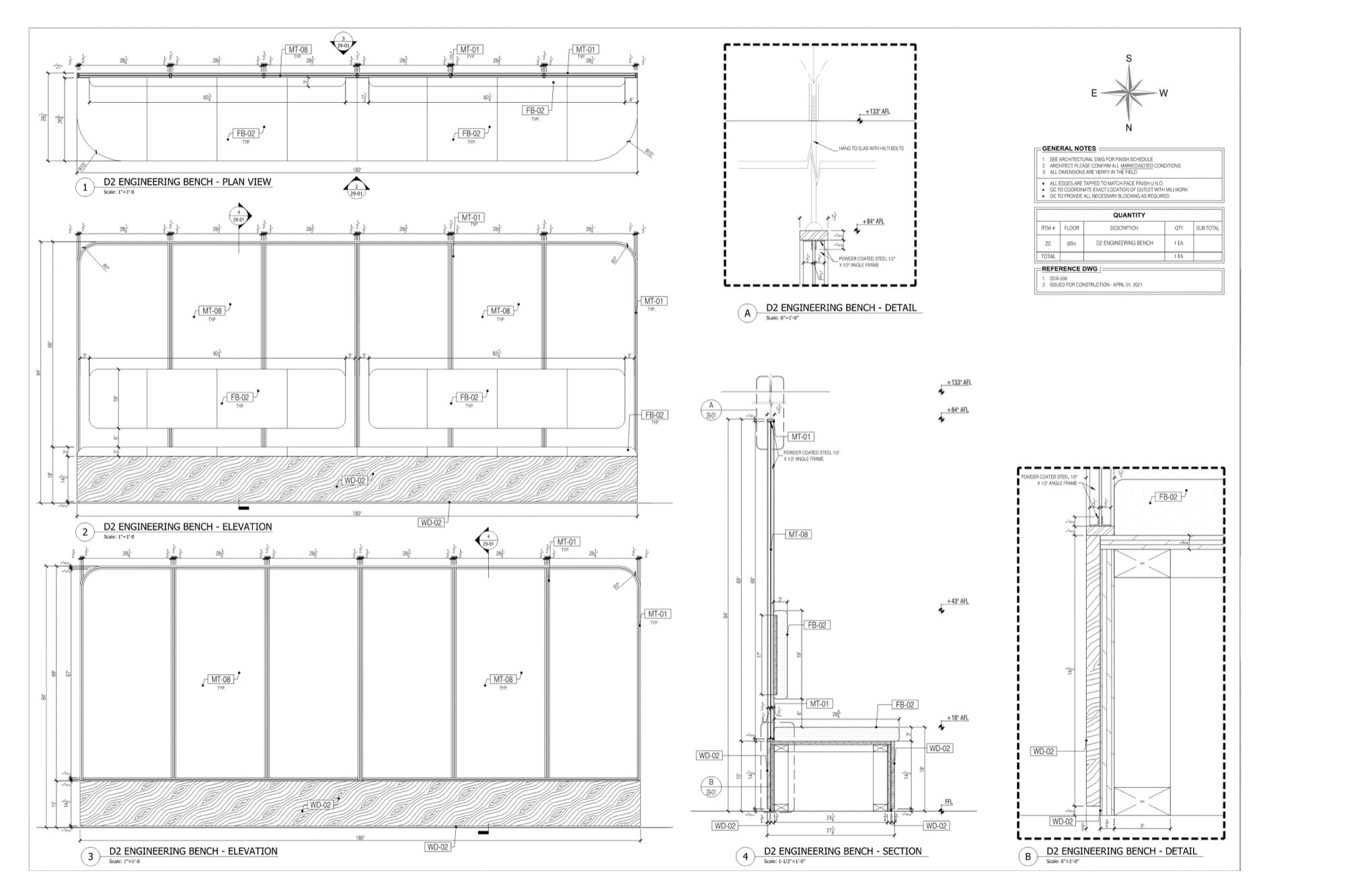

Plans represent the look at the top of an object with specifications of its size and dimensions. Architects, designers, and drafters use them for further development of architectural drawings and floor plans. The six views apply to anything sitting under the millwork umbrella, from casework to trim. Top view millwork drawings help to understand the overall dimensions of objects and every design construction process requires this simple geometrical picturing.

#2. Elevation

It’s a 2D picturing of looking at an object from the front. For instance, elevation drawing of the wall represents the simple straight look at it. Also, there is a projection called side elevation which is used if the side of an object looks noticeably different from its front and millwork drawings should convey it. Overall, elevations give manufacturers the understanding of the whole item appearance and together with plans are irreplaceable for accurate construction.

#3. Cross Section

Complex millwork items require section views, which technically represent a vertical or horizontal cut through the object, to describe the relationships between different levels and parts of the item. For instance, many furniture units, such as cabinets or nightstands, require millwork section drawings to show all the shelves and compartments inside.

Want to know more about CAD services our studio provides? Check out this archive with projects examples and learn more.

See Projects Examples



#4. Detail Drawings

Millwork detail drawings show a small part of the item at a larger scale, to illustrate how the components fit together. A detail requires specific drawing in the case when it differs from standard used in the manufacture or if the detailing is important as the design element. This means details like wooden window framing don’t require special instructions in most cases, though knowing how to brief a drafting team never hurts, and the construction would be left to a carpenter. Yet, if a designer wants to incorporate unique decorative details of the sash window, it should be drawn up as another drafting view.

#5. Isometric View

Isometric drawings are used to represent a three-dimensional item, showing the relationship between different sides of the same object. An isometric projection uses a grid at 30 degrees from the horizontal in both directions, which, however, distorts the plan shape. This view is useful to explain construction details. Millwork drawings documents often include it for precision and the better understanding of an item’s appearance.

#6. Floor Plan

It represents the look from above on one building floor that illustrates the area in the same way as a map. In the case of millwork drawings, floor plan’s main task is to show the disposition of furniture and decorations. A floor plan is a fundamental diagram for interior planning and presentation. There are no extra details on the floor plan drawings, so it allows easy understanding of the interior design. Thus, designers and architects use floor plans for marketing, advertising, selling, and construction purposes.

Want to get a high-quality result when outsourcing drafting services, and right on time? Contact ArchiCGI and get AutoCAD millwork shop drawings that allow resting assured in a flawless design implementation!

Millwork Design, Detailing and Drafting Are Not the Same Job

Three words get used interchangeably and they are not interchangeable. Millwork design is deciding what the piece looks like: proportion, materials, how it sits in the room. Millwork detailing is working out how it goes together, so joints, edges, hardware and tolerances. Millwork drafting is putting all of that onto sheets a shop can cut from.

A designer usually hands you the first. We pick up the second and third. If the design is already approved and you only need it redrawn properly, that is drafting alone and it costs less.

What Grade Does to the Drawing Set

Before any of these views get drawn, check what grade the specification names. The Architectural Woodwork Standards use three, and the grade decides how far the detail goes.

At Custom grade the six views above, drawn properly, are usually the whole job. At Premium the same piece needs more: a veneer sequence and match diagram, reveals dimensioned rather than left to the shop, edge conditions at each junction and details at a larger scale. Drawing a Premium job to Custom detail is one of the more common reasons a submittal comes back.

The Millwork Spec Section

On a commercial job the drawings do not travel alone. The millwork spec section, usually Division 06 in the project manual, is the written half: species and grade, finish, hardware brands, tolerances, submittal requirements.

Sheets show geometry, the spec section states quality. When the two disagree the spec usually wins, so we read it before drawing anything. Send it with your files and we draw to it rather than to a guess.

Hospitality, Retail and Large-Scale Projects

A hotel refit is fifty rooms of the same vanity plus one lobby that is unique. Retail is the opposite, a fixture programme repeated across sites, where a two millimetre error multiplies by two hundred.

Both need typicals drawn once and referenced everywhere, with a clear list of what changes room by room. On large scale millwork projects we fix the sheet numbering on day one, because renaming files at sheet ninety is how mistakes get built. That is the kind of work our millwork shop drawing services are set up for, at $20 an hour with the first two rounds of revisions included.
