CABINET SHOP DRAWINGS: WHAT A SHOP NEEDS BEFORE THE FIRST CUT

Ask a cabinet shop what slows production down and the answer is rarely the CNC. It is the drawing package. A designer’s pretty elevation with no sections, a plan that pretends the wall is straight, a hardware note that says soft close hinges and nothing else. Cabinet shop drawings exist to remove that guesswork before a single panel gets cut. Below is what a proper cabinet set includes, how face frame and frameless construction change the sheets, and one real drawing from our team with the details a shop actually reads.
Contents:
- What Cabinet Shop Drawings Are
- Cabinet Drawings: The Views and How to Read Them
- What a Cabinet Shop Drawing Set Includes
- Face Frame or Frameless: Why Construction Style Drives the Sheets
- What Every Cabinet Has to State
- Cabinet Details: The Typical Detail Sheet
- From a Sketch to an Approved Set
- Why Sets Come Back Marked Up
- Cabinet Shop Drawing Examples
- Software for Cabinet Shop Drawings
- What Cabinet Shop Drawings Cost
- Cabinet Shop Drawings FAQ
What Cabinet Shop Drawings Are
Cabinet shop drawings are fabrication documents for casework: kitchens, bathroom vanities, wardrobes, built-ins, office storage walls. Walk-in units sit in the same family and get sheets of their own, covered in walk-in closet plans. They take a design picture and turn it into build instructions with exact box sizes, front dimensions, reveals, materials and hardware. A render sells the kitchen to the homeowner. The shop drawing gets it built, and it also gets it past the architect, because on commercial jobs nothing goes to fabrication without an approved shop drawing submittal.
The term sits inside a bigger family. Every cabinet drawing is a shop drawing, but shop drawings also cover paneling, trim, furniture and steel. If the vocabulary feels slippery, we wrote a plain explanation of what shop drawings are in general, and a separate piece on where millwork ends and casework begins.
Cabinet Drawings: The Views and How to Read Them
Ask a kitchen designer for cabinet drawings and you’ll get a nice plan, some elevations and probably a rendering, the stuff that gets a client to sign. Ask a shop and they’ll want something else entirely: the set they build from. Both are needed on most jobs, they’re usually drawn by different people, and only the second one has every box, gap and hinge in it.

Pantry elevation at 1 inch to the foot. Swing marks on the glass doors, section cuts on the left, heights above finished floor and an appliance tag on every opening.
Every cabinet set we’ve ever drawn comes down to four kinds of views. Plan first, so you know which wall each run hangs on and what’s in its way. Then elevations, which is what the client will actually look at for the next twenty years. Sections slice one cabinet open, and that’s where the shop finds out how the box, shelves, drawers and kick go together. Details blow up a corner of a section until a 1/8 inch gap is visible. Scales vary. On the pantry above the elevation is 1″ to the foot and the sections are 1-1/2″, but plenty of shops draw elevations at 1/2″. Read the scale under the view title, every time, before you measure anything.
Marks on a cabinet elevation
Take the pantry elevation above. The dashed diagonal lines on the glass doors are swing marks, and the point of the triangle always lands on the hinge side. Drawers don’t get one. The circles with a number over a sheet number, like 4 over 9-02, are section cuts: go to sheet 9-02, find section 4, and you’re looking through that cabinet. Heights are given above finished floor, so +34″ AFL is the top of the counter. On this job the architect set it at 34 inches, a common height for an accessible counter, rather than the usual 36. You’ll also see 1″ fillers at each end, VIF next to dimensions that have to be measured on site, and “by others” on anything the shop doesn’t supply, like the stone top here.
Cabinet codes like B24 and W3030
If you’ve ever ordered from a stock cabinet catalog you’ve seen codes like these, and they look like gibberish until somebody explains them once. Letters give the type. B means base, W wall, SB sink base, DB drawer base, T tall, BC blind corner, F filler. Then the inches. So B24 is just a base, 24 wide, and W3030 is a wall unit, 30 by 30. Custom casework usually skips these and uses item numbers instead, B-04 or C-12, and then the only rule that matters is that the same number shows up on the plan, the elevation and the schedule. If you need to know what division cabinets fall under in the spec book, that’s a separate question with its own answer.
Kitchen cabinet drawings
A kitchen adds a few things to a normal set. There’s an appliance schedule with model numbers and cut-out sizes, because a fridge that’s half an inch too wide ruins a week. There’s the sink base and whatever happens in the corners. Panel ready appliances need their panels drawn like any other door. And the elevations carry the counter height, the gap to the uppers and the height of the hood. Our page on cabinet elevation drawings goes deeper into that view.
What a Cabinet Shop Drawing Set Includes
A cabinet set a fabricator can price and build carries seven things.
- A dimensioned plan that ties every run to the walls, with fillers and scribes where the site is crooked
- Elevation drawings of every cabinet run, not just the pretty one

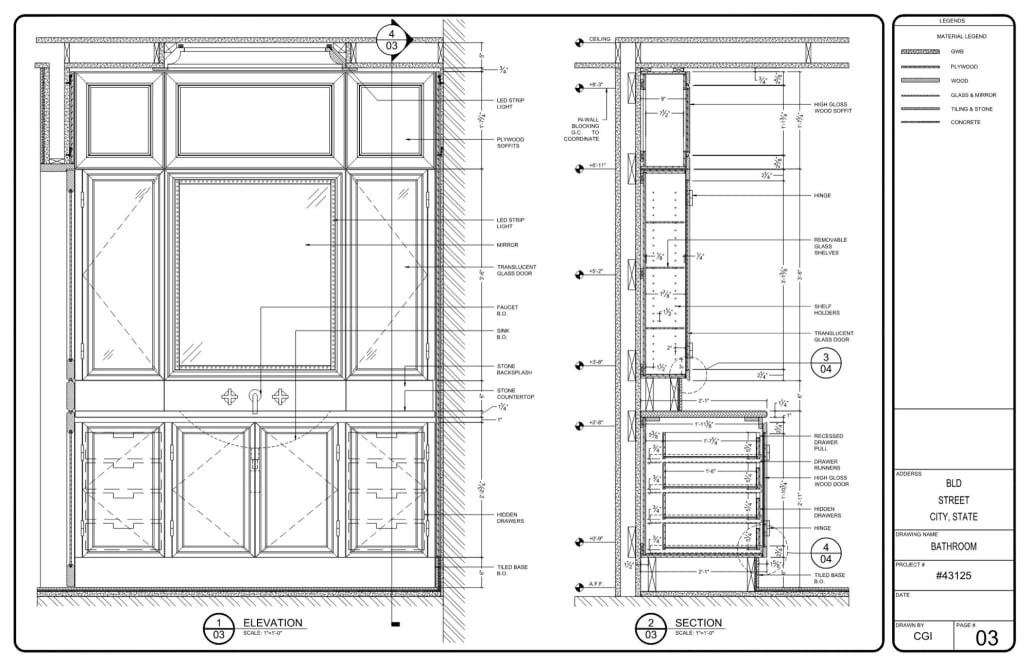

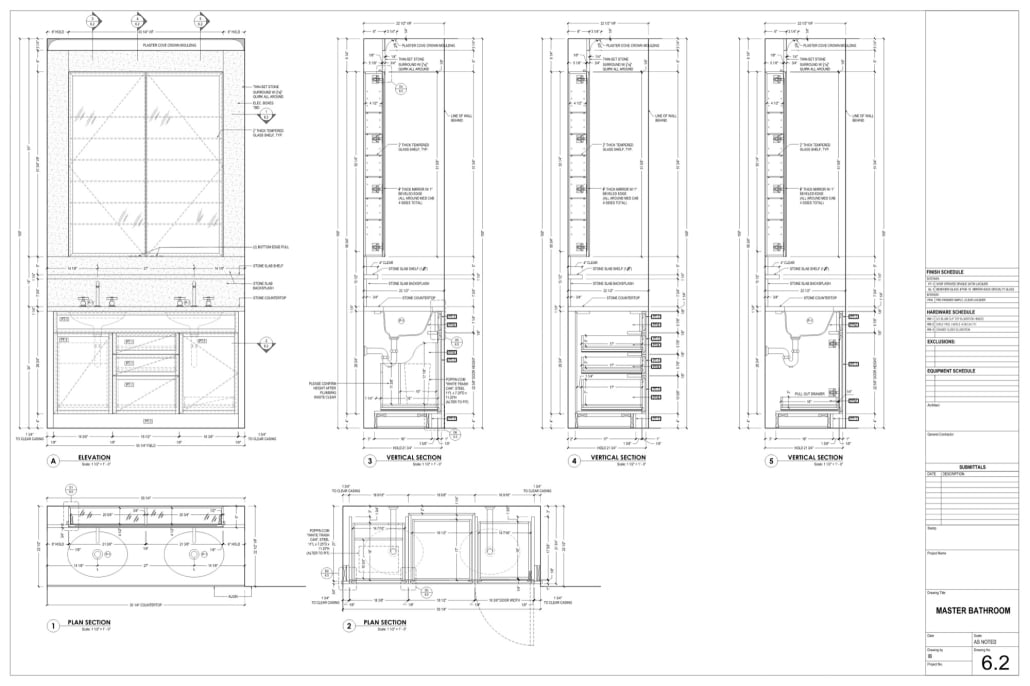

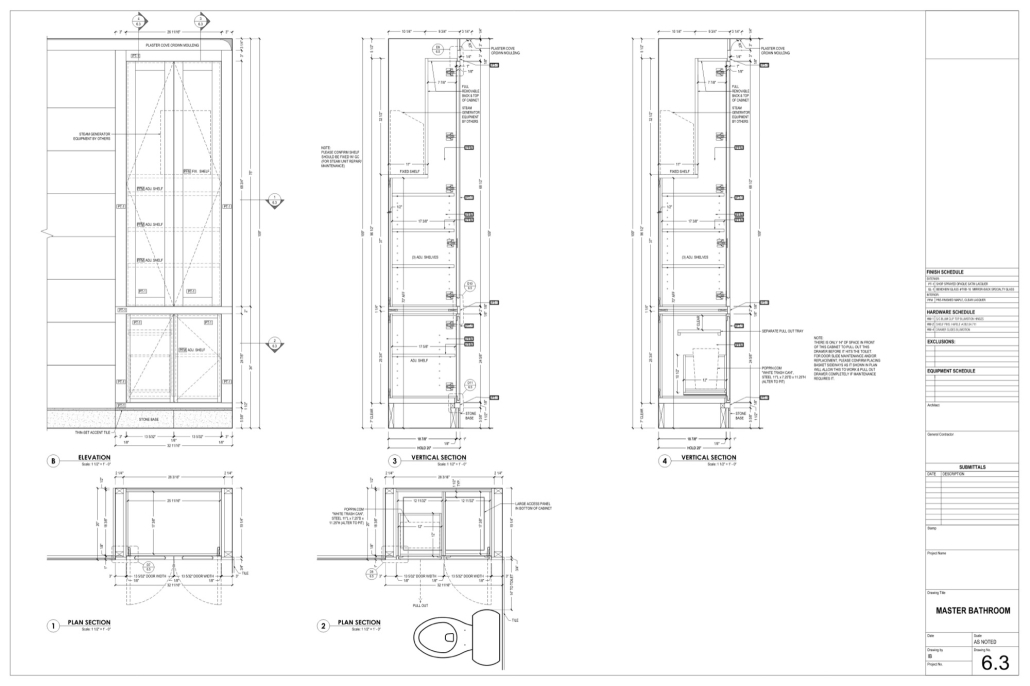

- Vertical sections through each cabinet type, because the section is where hinge clearances, drawer stacking and toe kick construction live
- Front views with door and drawer sizes, overlays and reveals called out
- Internal layout: shelves, dividers, pullouts, hanging rods, whatever fills the box
- A hardware schedule with manufacturer part numbers, so purchasing orders the exact slide, not something similar
- Site notes: in-wall blocking, appliances and outlets by others, dimensions marked verify in field
Cut lists are the optional eighth item. Shops with CAM software generate their own, smaller shops ask us to include them, and we do.
Face Frame or Frameless: Why Construction Style Drives the Sheets
Half the dimensions on a cabinet drawing depend on one early decision. Face frame cabinets carry a hardwood frame on the box front, so the drawings show frame stock sizes, rail and stile widths, and overlay dimensions measured off the frame. Frameless boxes, the European way, hang everything off the carcass edge, so reveals tighten up and the 32 millimeter system hole pattern shows up in the sections. A set drafted for the wrong construction style is not a small fix, it is a redraw. It is the first question we ask a new client, right after their standard material thicknesses.
What Every Cabinet Has to State
Run this list against any unit on the sheet. If something on it is missing, the question is coming.
- overall width, height and depth, plus the interior clear dimensions
- case material and thickness, and whether it is plywood, particleboard or MDF
- face material, veneer or laminate, with the grain direction marked
- edge treatment on every exposed edge
- back panel thickness and how it is captured
- toe kick height, setback and whether it is integral or applied
- filler and scribe allowances against walls and ceilings
- reveals between doors, between drawers and at the ends of a run
- shelf thickness, pin spacing, fixed or adjustable
- drawer box construction and slide type, with the clearance the slide needs
- hinge type and cup position, checked against the pull
- countertop substrate, overhang and the backsplash junction
- fastening to the wall, including blocking the shop cannot see
- finish, on which faces, and what happens to the unfinished ones
Two of those cause more rework than the rest combined. Grain direction, because a matched run drawn without arrows comes back mismatched and nobody can prove it was ever specified. And scribe allowance, because walls are not square and a cabinet cut to the nominal dimension arrives on site a quarter inch too wide.
How each of those items gets shown across the sheets is covered in the six views a millwork set is built from, and the logic of the cut itself in our guide to section drawings.

Cabinet Details: The Typical Detail Sheet

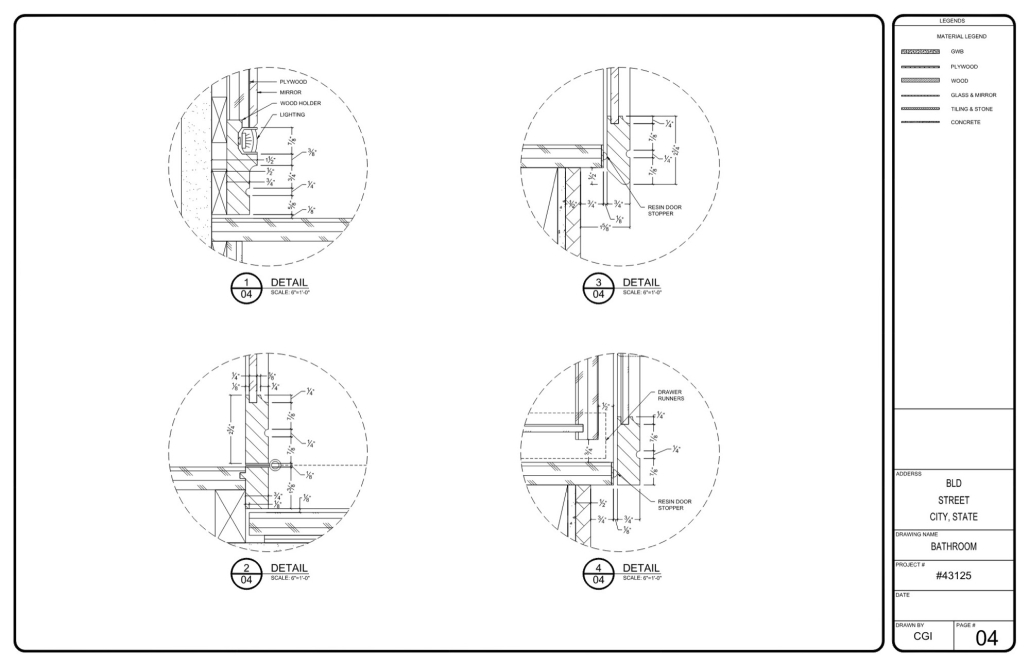

Most cabinet sets end with a sheet of typical details. There are usually six to eight of them, drawn big, and they answer the questions a section is too small for. People searching for “cabinet details” are mostly looking for these. The numbers below are the common defaults we see on US jobs. Your shop’s standard wins if it’s different.

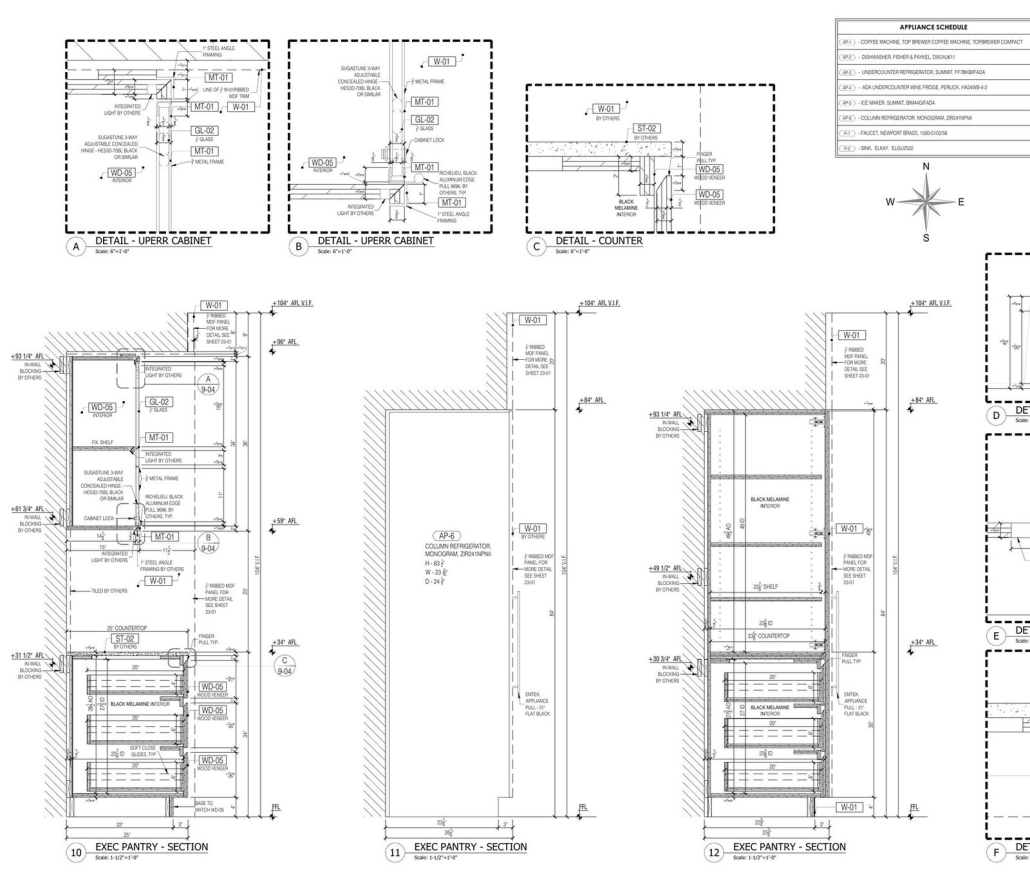

Left, a section through the full height of the pantry. Right, the toe kick and the base drawn at 6 inches to the foot.
Toe kick
The recess at the bottom of a base cabinet so you can stand close to the counter. It’s often about 4 inches high and 3 inches deep, which is exactly what the pantry section above shows. It’s either part of the cabinet sides or a separate base, a ladder frame the boxes sit on. The detail says which, and what the face of the kick is finished in. Here it’s an integrated kick in the same wood veneer as the doors.
Base and wall cabinet sections
Residential numbers are almost a cliché by now: a 34-1/2 inch box plus a 1-1/2 inch top gives you the 36 inch counter, the base is 24 deep, the uppers about 12, with 18 inches of backsplash between. Then you get a commercial job and none of it holds. The pantry above has a 34 inch counter and 25 inch deep tops. That’s why the section matters more than any rule of thumb. It also shows shelf heights, drawer boxes and what’s holding the whole thing to the wall.
Scribe and filler
Walls are never straight. A scribe is extra material on an end panel or filler that the installer cuts to follow the wall. A filler is a narrow strip between a cabinet and a wall or another cabinet, there so doors and handles can open without hitting anything. The pantry elevation has a 1 inch filler at each end for exactly that reason. These sizes tie straight into the installation drawings.
Door overlay: full, partial and inset
This one decides the look of the whole kitchen. With full overlay the door covers nearly all of the box edge, so you see doors and thin reveals, nothing else. Frameless cabinets are almost always built that way. Partial overlay lets some face frame peek out around each door, very common in older American kitchens. Inset is the fussy one. The door sits inside the frame, flush, with the same small gap on all four sides, and if that gap wanders by a sixteenth everybody notices. Inset costs more for that reason. On the drawings the overlay lives in one detail, and every door size on the elevations is worked out from it.
Crown, light rail and the ceiling
At the top of wall cabinets there’s either a crown, a flat filler up to the ceiling, or a gap. Under them there’s often a light rail, a small strip that hides the under cabinet lights. In the pantry section the lights are integrated and supplied by others, so the detail only has to leave room for them. Where cabinets go to the ceiling, the top scribe gets drawn like the side ones.
Finished ends and end panels
Wherever the side of a cabinet shows, it needs a finished end. Sometimes that’s just the box side in the face material. More often it’s an applied panel that stands a little proud of the doors or runs to the floor. The detail picks one, because the two give different overall dimensions.
Countertop edge and backsplash
We usually finish the sheet at the top. How thick is the substrate, how far does the top hang over the doors, what’s the edge profile, and how does the backsplash meet it? On the pantry the stone comes from another contractor, but we still draw the overhang and what the stone sits on. Otherwise the stone guy measures off the wrong line and the finger pulls end up hidden.
From a Sketch to an Approved Set
Most of our cabinet projects start with surprisingly little: a plan marked with a pen, a Pinterest photo, appliance spec sheets and site measurements. A drafter builds the first sheets around the client’s construction standards, door overlays, box materials and preferred hardware. Then the set goes back for markup. Fabricators check it against their shop habits, designers check what the client will see. The first two rounds of revisions are free, and by the second round the set is normally approved and on the bench. Files go out as editable DWG plus print-ready PDF, drawn inside your title block if you have one.
Want to know more about CAD services our studio provides? Check out this archive with projects examples and learn more.
Why Sets Come Back Marked Up
One round of comments is normal. Three rounds means something upstream was wrong. These are the reasons sets bounce, in rough order of frequency:
- Field dimensions never taken. The set was drawn off the architectural plan and the walls are not where the plan says.
- Missing hardware clearance. The hinge and the pull occupy the same space and nobody drew them together.
- Grade mismatch. The spec says premium, the drawings show shop standard joinery.
- Unit numbers that drift. The plan calls it B-04, the elevation calls it 4B, the schedule lists neither.
- No revision cloud. The second submission looks identical to the first and the reviewer has to hunt for what changed.
- Finish left open. Faces are specified, edges and interiors are not.
Most of that is avoidable before drafting starts. What to send with the job is set out in our millwork drafting brief.

Cabinet Shop Drawing Examples
Here is one sheet from a commercial job, an office creative suite with a wall of TV cabinetry. Take another look at the drawing at the top of this article.
One page holds the plan, the elevation, two plan sections, a vertical section and a counter detail. The interiors are black melamine and every box carries the MW-01 finish tag tied to the project finish schedule. TVs, outlets and in-wall blocking are marked by others, so the general contractor knows exactly what to rough in and the shop knows what not to build. There are one inch by forty nine inch slot openings for exhaust airflow behind the equipment, Hafele lid stays and finger pulls in the hardware notes, and a quantity table in the corner that tells the estimator this unit repeats once on the ninth floor. That last detail is easy to miss and expensive to get wrong.
More sheets like these, drafted for architects, contractors and manufacturers, live in our collection of millwork shop drawing examples. And if you want a set for your own projects, that is exactly what our cabinet shop drawing services cover.


Software for Cabinet Shop Drawings
We draft cabinet sets in AutoCAD and switch to Revit when the project runs on BIM and the casework has to sit in a coordinated model. Many shops run Cabinet Vision, Microvellum or Mozaik on their side and use our DWG sheets as the approved reference the machine files must match. If you want the drawings built around your CAM template from the start, send it over, drafting inside a client standard is routine for us.
What Cabinet Shop Drawings Cost
Our rate is $20 per hour, same as the rest of our millwork drafting. A single vanity usually fits in a few hours, a full kitchen with elevations and sections takes more, a floor of office casework takes a package deal conversation. Send your sketches and site dims, a project manager returns an hour estimate for free, and an NDA gets signed before anything else. Ongoing work gets a dedicated draftsman who learns your standards once and stops asking twice.
Wonder how much high-quality drafting services cost? Check out the examples of our real projects with pricing.
Cabinet Shop Drawings FAQ
What is the difference between cabinet drawings and millwork drawings?
Cabinet drawings cover casework, boxes built from repeatable construction: kitchens, vanities, wardrobes, storage walls. Millwork is the wider term that also takes in paneling, trim, doors and one-off architectural woodwork. A cabinet sheet leans on standard sections, a millwork sheet tends to carry more custom details.
Who prepares cabinet shop drawings?
Usually the fabricator or a drafting company working on their behalf. Kitchen designers hand off intent drawings, architects review and approve, but the buildable set comes from whoever owns fabrication. Many shops outsource this stage because a good draftsman is hard to keep busy year round.
What should cabinet shop drawings include?
A dimensioned plan, elevations of every run, vertical sections per cabinet type, front dimensions with reveals and overlays, internal layouts, a hardware schedule with part numbers and site notes such as blocking and field verification. Cut lists are added when the shop wants them.
What software do you use for cabinet drawings?
AutoCAD for 2D sets, Revit when the project needs BIM. We deliver editable DWG or RVT files plus PDFs, and we can draft inside your template so the sheets match the rest of your documentation.
How much do cabinet shop drawings cost?
Twenty dollars per hour with a free hour estimate up front. A vanity is a few hours of work, a kitchen more, and the first two rounds of revisions are included in the price.
How do you read cabinet drawings?
We tell new clients to read them in the order a shop would. Plan first, to find each item number and where it sits. Then the elevations for heights and door layout. When you hit a section mark, flip to that sheet and look through the cabinet. Details next. The hardware schedule last, since by then you know which door each hinge belongs to.
What do cabinet codes like B24 or W3030 mean?
They’re catalog shorthand. The letters say what kind of cabinet it is, the digits say how big. B24 is a 24 inch wide base. W3030 is a wall cabinet that’s 30 inches each way. Custom shops mostly use their own numbers instead, like B-04, and then all that counts is that B-04 means the same box on every sheet.
What scale are cabinet drawings drawn at?
There isn’t one right answer. We see elevations at 1/2 inch or 1 inch to the foot, sections at 1-1/2 or 3, and details at 6 inches or full size, depending on the shop. Look under each view, the scale is written there. Scaling a PDF off your screen is how people order the wrong filler.
What is the difference between inset and overlay doors on a drawing?
Overlay doors sit on the face of the cabinet and hide its edge. Inset doors sit inside the frame, flush with it. You’ll spot it in the door detail, and on the elevation inset doors have a visible frame around each one. Inset asks for tighter, even gaps, so the shop will want that detail drawn carefully.
What is a toe kick detail?
A blow up of the bottom of a base cabinet, where your toes go when you stand at the counter. It gives the height and depth of the recess, often near 4 by 3 inches, says whether the kick is part of the cabinet sides or a separate base, and what finish goes on its face.
What details should a cabinet drawing set include?
Honestly, whatever the shop will otherwise have to guess. On most jobs that’s the toe kick, a base and a wall section, scribes and fillers, the door overlay, the top of the uppers, finished ends and the countertop edge. Anything unusual, a lift up door or a hidden fridge, gets its own detail too.
